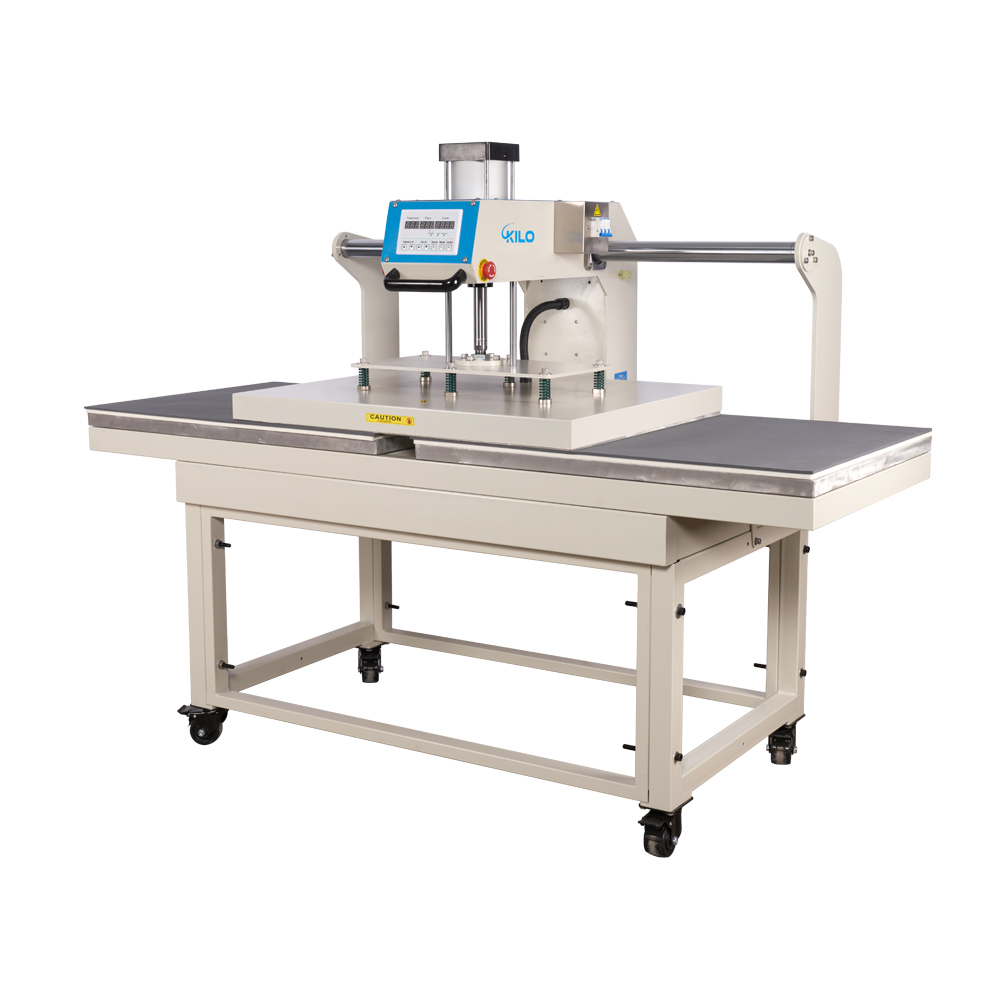

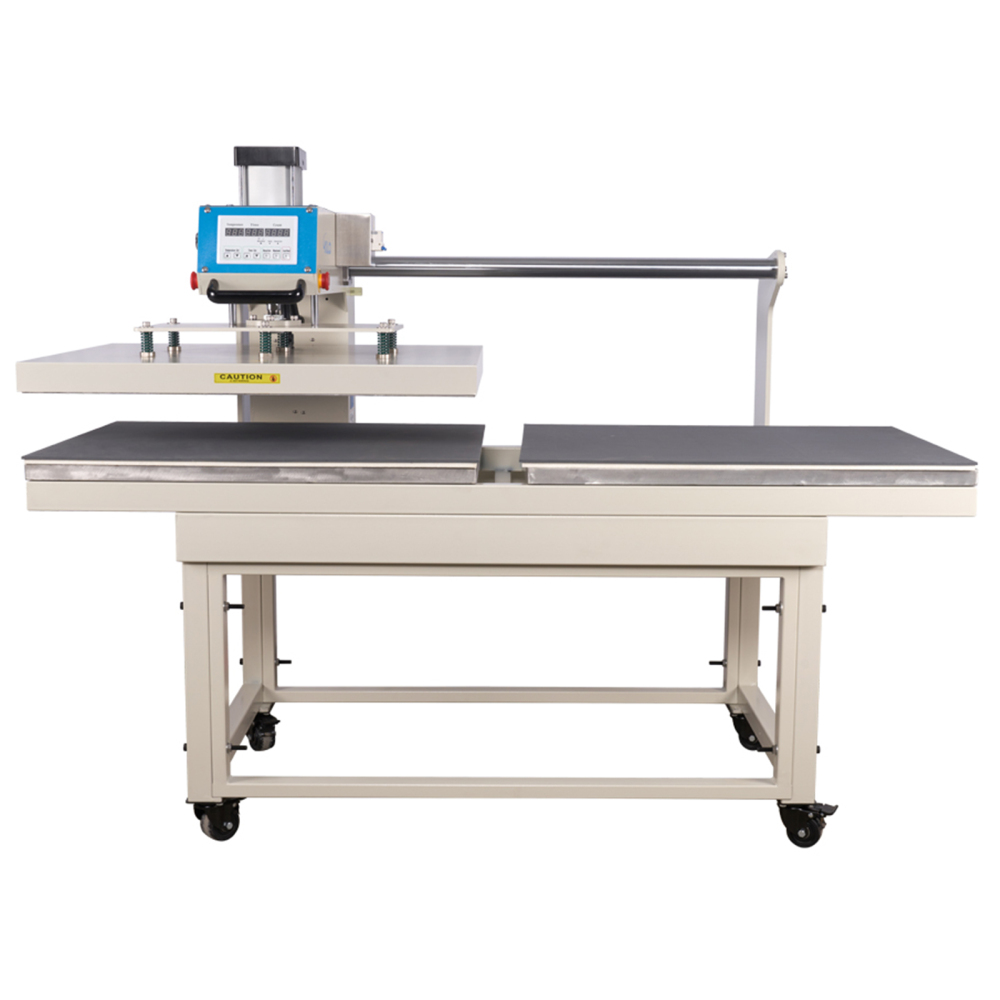

WUMSTOT Professional Large Format Heat Press - Your Ultimate Industrial Printing Solution
Transform your printing business with WUMSTOT's premium 24"x40" pneumatic heat press machine, engineered for high-volume commercial production and superior quality results.
🔧 TECHNICAL SPECIFICATIONS:

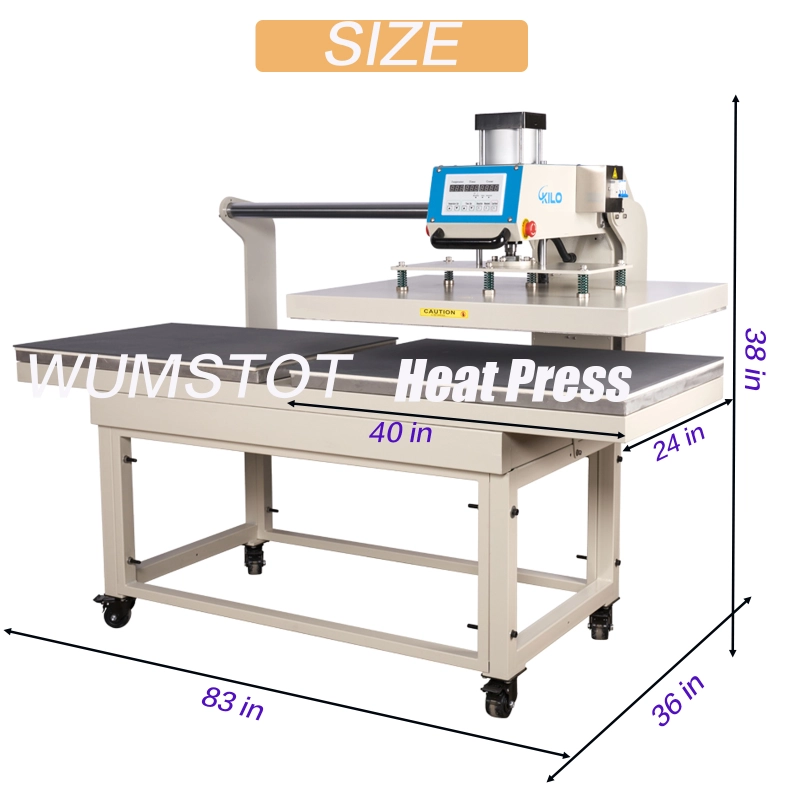

Machine Dimensions: 83.00"(L) x 36.00"(W) x 38.00"(H)
Machine Weight: 396.90 LBS
Package Size: 83.70"(L) x 36.20"(W) x 38.40"(H)
Package Weight: 441.00 LBS
Heat Plate Size: 28" x 35" (70 x 90cm)
Voltage: 220V (Single Phase)
Power: 7KW
Temperature Range: 0-299°C (0-570°F)
Time Range: 1-999 seconds
Maximum Thickness Capacity: 2.36 inches
Working Pressure: 0.4Mpa-0.6Mpa
Pressure Adjustment: Up to 8kg/cm²
💪 PROFESSIONAL FEATURES:
Advanced Heating System
Die-cast aluminum heating plate with integrated heating elements
Rapid heat-up time
Even temperature distribution
Superior durability
Dual Station Design
Sliding mechanism for continuous operation
Parallel bearing system for smooth movement
Increased production efficiency
Reduced downtime
Premium Construction
Heavy-duty aluminum frame
Industrial-grade components
Built for 24/7 operation

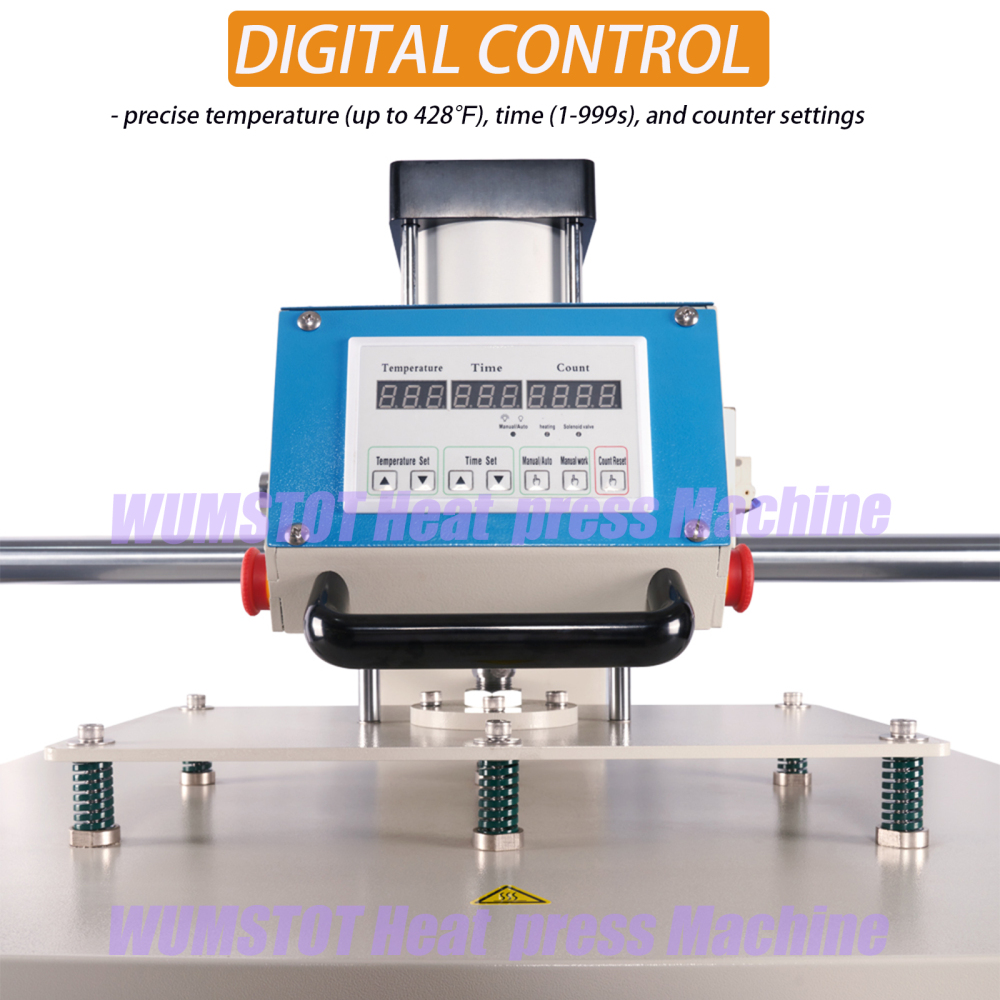

Intelligent Control System
Digital LED display
Precise temperature control
Accurate timing system
Production counter
Completion signal alert
📊 RECOMMENDED SETTINGS BY MATERIAL:
Temperature Guidelines:
Cotton: 356℉-428℉ (180℃-220℃)
Polyester: 356℉ (180℃)
Chemical Fiber: 302℉-356℉ (150℃-180℃)
Pearl Board: 356℉ (180℃)
Metal Items: 356℉ (180℃)
Mousepad: 374℉ (190℃)
Vitrolite: 392℉ (200℃)
Ceramics: 356℉-428℉ (180℃-220℃)
Time Guidelines:
Cotton: 15-25 seconds
Polyester: 40 seconds
Chemical Fiber: 10-40 seconds
Pearl Board: 60-100 seconds
Metal Items: 60 seconds
Mousepad: 50 seconds
Vitrolite: 180 seconds
Key Ring Pendant: 100 seconds
Ceramics: 180 seconds
🛠️ SAFETY FEATURES:
Emergency stop button
Overheating protection
Pressure relief valve
Electric leakage protection
Temperature calibration system
📦 PACKAGE CONTENTS:
1x Heat Press Machine
1x Air Hose
1x Silicon Mat (6MM)
1x Sponge Layer (10MM)
1x User Manual
🌟 EXCLUSIVE CUSTOMER BENEFITS:
Join our "WUMSTOT Heat Press Machine" community
Access to expert technical support
Share experiences with other professionals
Regular tips and tutorials
Lifetime after-sales service
Exclusive member discounts
⚡ IDEAL APPLICATIONS:
Commercial Print Shops
Garment Manufacturers
Promotional Products
Custom Apparel Businesses
Sign Shops
Educational Institutions
Manufacturing Facilities
⚠️ IMPORTANT NOTES:
Air compressor required (not included)
Professional installation recommended
220V power supply required
Allow 15-20 minutes warm-up time
Regular maintenance recommended

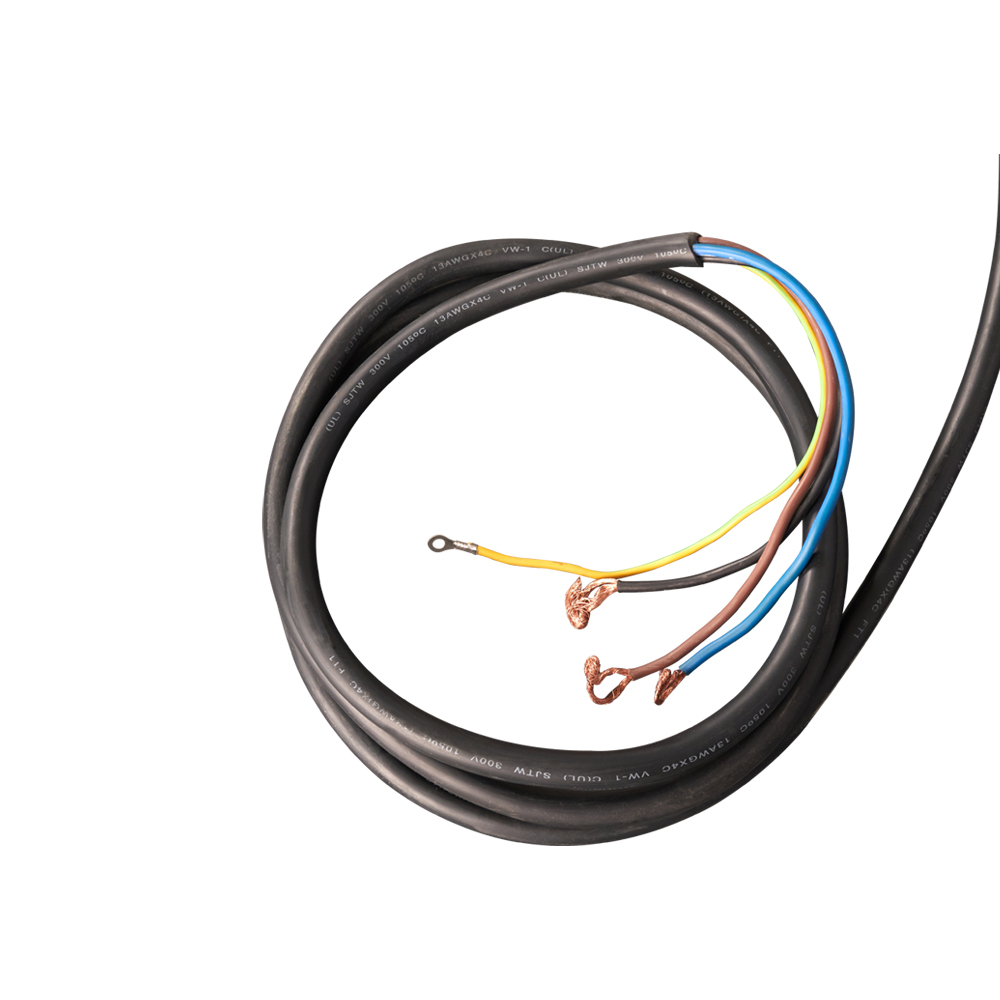

Need to connect the machine’s power cable directly to the circuit breaker.
💯 QUALITY ASSURANCE:
1-Year Manufacturer Warranty
Quality Control Tested
Professional Grade Components
Industrial Standard Compliance
Make your investment count with WUMSTOT's professional-grade heat press machine - where quality meets efficiency in every press.
Need help? Join our community by searching "WUMSTOT Heat Press Machine" for instant support and a wealth of knowledge from our experienced users.

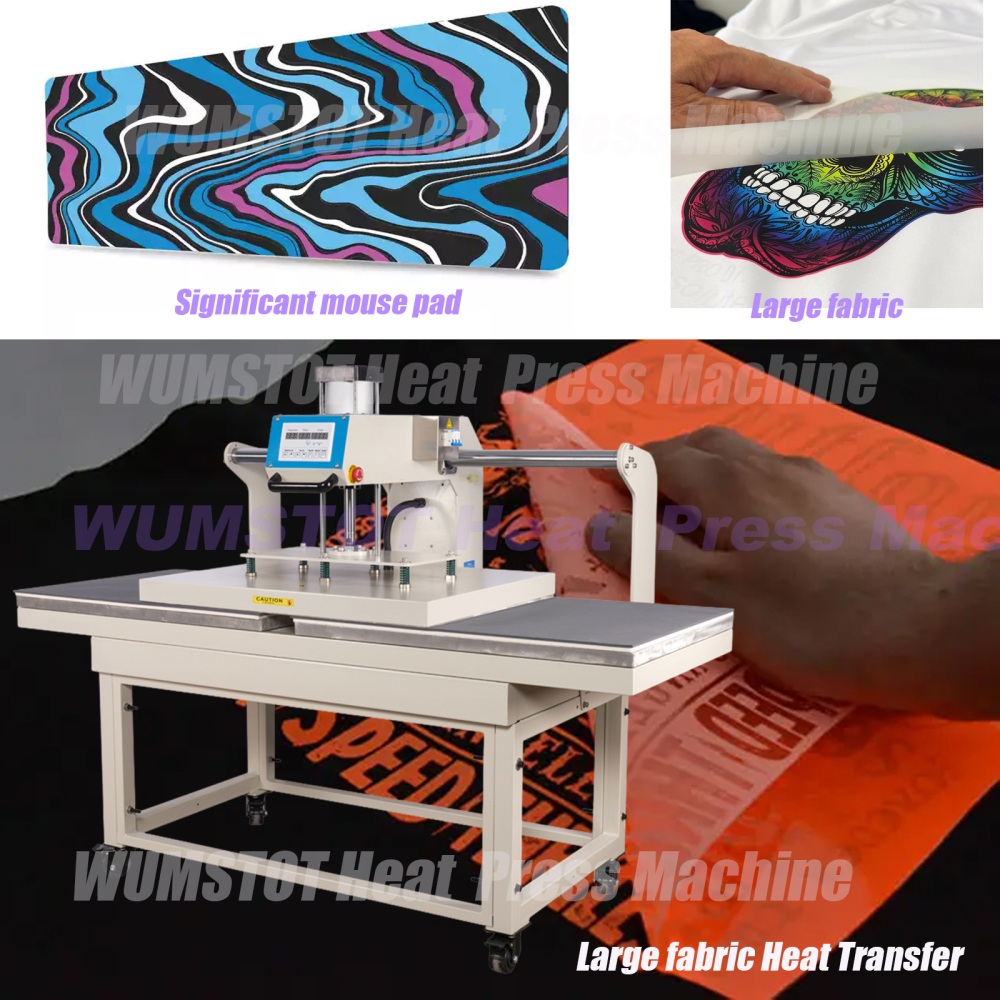

Large 24x40 Heat Press for High-Volume ProductionDesigned for commercial and industrial printing, this dual heat press machine offers an oversized 24x40-inch platen, allowing you to print on T-shirts, fabric, metal, ceramic, and more. Perfect for businesses that need to handle bulk orders with precision.Pneumatic Automatic Operation for Effortless TransfersThe auto heat press system applies even and consistent pressure with pneumatic automation, reducing manual effort while improving accuracy. This ensures professional-quality transfers with minimal user input.Dual Platen Sliding Design for Maximum EfficiencyUnlike standard presses, this 16x24 pneumatic sliding dual platen heat pressauto heat press features a dual platen sliding system, allowing for faster workflow. While one side is in use, the other can be prepped, maximizing productivity.Digital Control Panel for Precision Heat & Pressure SettingsThe digital touchscreen control makes it easy to adjust temperature, time, and pressure for different materials. Whether working with sublimation, DTF, or heat transfer vinyl, this 16x24 pneumatic heat press provides consistent, reliable results.Versatile Applications for Fabric, Metal, and Ceramic PrintingThis dual heat press machine is built for custom T-shirt printing, fabric transfers, metal engraving, and ceramic designs, making it an essential tool for professional print shops and businesses.
Product Advantages
- Large 24x40-Inch Platen – Handles oversized prints for commercial production.
- Pneumatic Auto Heat Press System – Ensures even pressure and hands-free operation.
- Dual Sliding Platen Design – Maximizes efficiency for high-volume orders.
- Digital Temperature & Pressure Control – Allows precise adjustments for different materials.
- Versatile for Various Printing Needs – Ideal for T-shirts, fabric, metal, and ceramics.
About Us
At WUMSTOT & KILO, we are more than just manufacturers – we are innovators in commercial machinery solutions. With over 30 years of experience, we specialize in heat transfer machines, industrial-grade embroidery systems, digital printing equipment, and rotary screen printing technology, delivering precision-engineered solutions that empower businesses worldwide.
Advanced Manufacturing & Quality Assurance
- State-of-the-Art Facilities – Our 50,000 sq. ft. manufacturing facility houses cutting-edge automated assembly lines, precision engineering workshops, and an advanced R&D lab.
- Rigorous Testing Standards – Every machine undergoes a 72-hour stress test before shipment, ensuring optimal performance from day one.
- Multi-Stage Quality Control – Our strict six-stage inspection process includes component-level verification, functionality assessment, and final calibration to guarantee 99.8% defect-free rates.
Industry-Leading Production Capabilities
- Over 200 skilled engineers and technicians dedicated to excellence.
- High-speed CNC machining & AI-powered quality control to ensure precision.
- 50,000+ machines delivered globally, with installations across 45+ countries.
- Certifications include CE, ISO 9001:2015, FCC, RoHS, ensuring compliance with global industry standards.
Sustainable & Eco-Friendly Manufacturing
- We integrate energy-efficient designs, recyclable packaging, and waste reduction initiatives to minimize our environmental footprint.
- Eco-friendly component sourcing and green energy utilization contribute to a more sustainable future.
Seamless Global Customer Support & Partnerships
- 24/7 multilingual technical support and lifetime consultation services.
- 98% spare parts availability for uninterrupted machine operation.
- Tailored OEM & ODM solutions to meet custom production needs.
- A streamlined purchasing process with expert consultation, ensuring the perfect solution for your business.
Join the WUMSTOT & KILO Network
Whether you're a fashion brand, print shop, industrial manufacturer, or entrepreneur, WUMSTOT & KILO is your trusted partner in cutting-edge machinery solutions. Let's collaborate and redefine industry standards together.
Get in touch with our team today to explore how we can support your business growth.
FAQ
Who are we?
We are WUMSTOT & KILO, a global leader in heat transfer, embroidery, and printing machinery manufacturing. With over 30 years of expertise, we deliver high-performance, precision-engineered solutions that empower businesses worldwide.
How can we guarantee quality?
We implement a six-stage quality control system, including:
- Component-level inspection to ensure material integrity.
- Assembly verification to confirm structural accuracy.
- Functionality testing to validate performance.
- Performance optimization to enhance durability.
- Stress testing under maximum load conditions.
- Final quality certification with over 100+ individual quality checks before shipment.
What can you buy from us?
We offer a wide range of commercial printing and embroidery solutions, including:
- Heat press machines
- Industrial embroidery equipment
- Digital printers
- Rotary screen printing systems
- DTF (Direct to Film) printing technology
Why should you buy from us instead of other suppliers?
- Proven Expertise – Over 30 years of industry experience with a track record of innovation.
- Manufacturing Excellence – A 50,000 sq. ft. facility with automated production lines and AI-powered quality control.
- Strict Quality Standards – Machines undergo a 72-hour intensive testing process before delivery.
- Global Certifications – CE, ISO 9001, FCC, and RoHS compliance for seamless international operations.
- Comprehensive Customer Support – 24/7 multilingual assistance, lifetime technical consultation, and 98% spare parts availability.
What services can we provide?
- OEM & ODM customization to meet specific business needs.
- Comprehensive training programs for optimal machine operation.
- Rapid response support system for technical inquiries.
- Regular firmware updates to enhance machine performance.
- Eco-friendly and sustainable manufacturing solutions.
Upgrade your production with the WUMSTOT KILO 24x40 dual heat press machine for faster, high-quality transfers. Order now and take your printing business to the next level!
