How to Install and Use WUMSTOT KILO 20x28 Pneumatic Automatic Dual Heat Press Machine

⚡ Electrical Specifications & Power Use Guide

Electrical Parameters
Item Specification
Voltage 110V, 60Hz (Single Phase)
Power 2.6 kW
Calculated Current ≈ 23.6 A (2600W ÷ 110V)
Recommended Electrical Setup (U.S. Standard)

1️⃣ Circuit Breaker

Recommended: 30 Amp / Single Pole / 120V breaker
Type: Thermal‑magnetic circuit breaker
Standard: UL489 / NEC compliant
The 30A rating provides safe margin above running current and startup peaks.

2️⃣ Power Supply Wiring

Recommended wire type: Copper (Cu) conductors only
Minimum wire gauge (AWG):
10 AWG copper for up to 30A circuit (cable length ≤ 50 ft)
8 AWG copper if the distance from breaker panel exceeds 50 ft
Wire insulation type: THHN / THWN rated ≥90°C
Ensure proper ground wire connection (12 AWG Cu or thicker) to a verified grounding terminal.

3️⃣ Power Outlet & Plug Type

This machine draws beyond normal 15A or 20A receptacle capacity, so it must be hard‑wired or connected through a dedicated 30A circuit with industrial‑grade plug & socket (e.g., NEMA L5-30 if approved by local code).

4️⃣ Dedicated Circuit Requirement

Always install on a dedicated 110V circuit (do not share with other equipment)
Ensure breaker, wiring, and outlet are installed by a licensed electrician per NEC (National Electrical Code) and local regulations.
Safety Notes
Before operation, confirm your wall outlet and breaker ratings meet the above specifications.
Never use extension cords — voltage drop can cause heating or damage.
Use a surge suppressor or power conditioner if your region has unstable voltage.
Turn off and unplug the machine when not in use.
Inspect wiring and plug regularly for wear or loosened connections.

1-3  Important : About Hose Locking Device

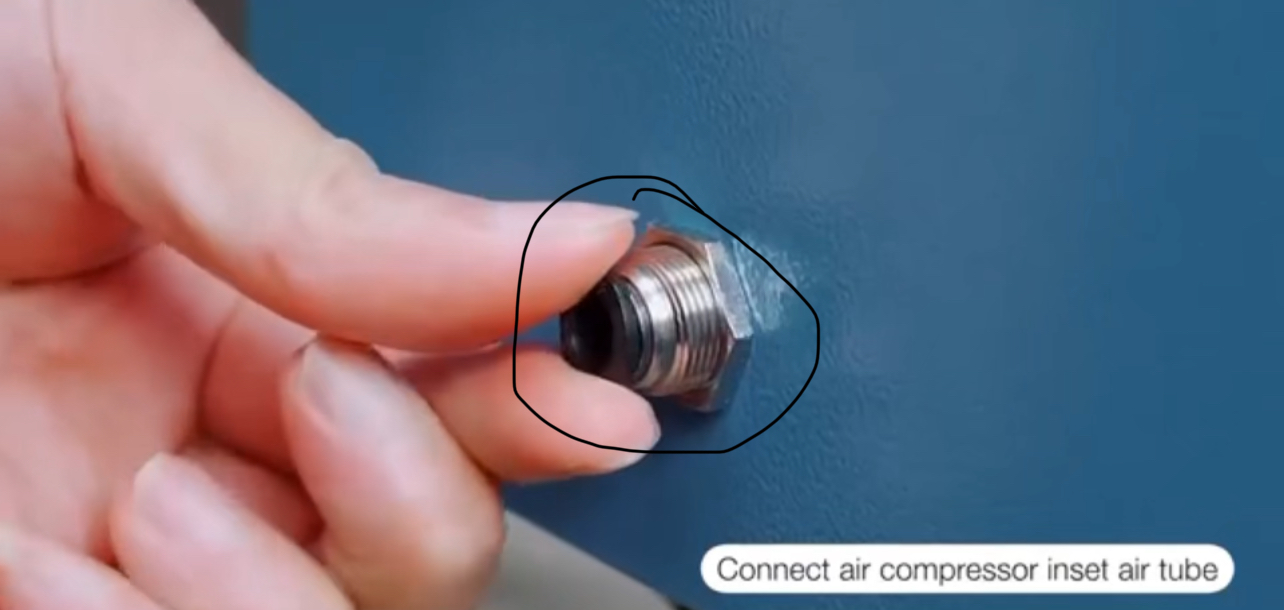

This black part is a hose locking device, which needs to be pressed down before inserting and pulling out the hose.

If the hose is forcibly pulled out without pressing the locking device, the black hose locking device will be destroyed.

2，  How to Set the Pressure

Minimum Air Compressor Requirements: 6 gallons, 135 PSI

However, a larger air compressor capacity means:

• Less frequent operation cycles
• Lower noise levels
• Better overall performance

Recommended:

• 10 gallons ↑, 135 PSI air compressor

Note: While 6 gallons is the minimum requirement, choosing a 10-gallon compressor will provide quieter operation and improved efficiency due to reduced cycling frequency.
🔊 PRO TIP: Quiet Workspace Solution!
Concerned about compressor noise? We've got you covered!
💡 Recommended: Ultra-Quiet Air Compressor:


• Only 66dB noise level
• Perfect for home studios
• Neighbor-friendly operation
• Ideal for residential areas

🔗 Click here to view Ultra-Quiet Air Compressor on Amazon

Compare:
📊 Regular compressor: 80-90dB
📊 This quiet model: <68dB
(Like normal conversation level!)

Perfect partner for your WUMSTOT heat press!


5， How to Lubricate the Machine's Cylinders and Required Oil Specifications:

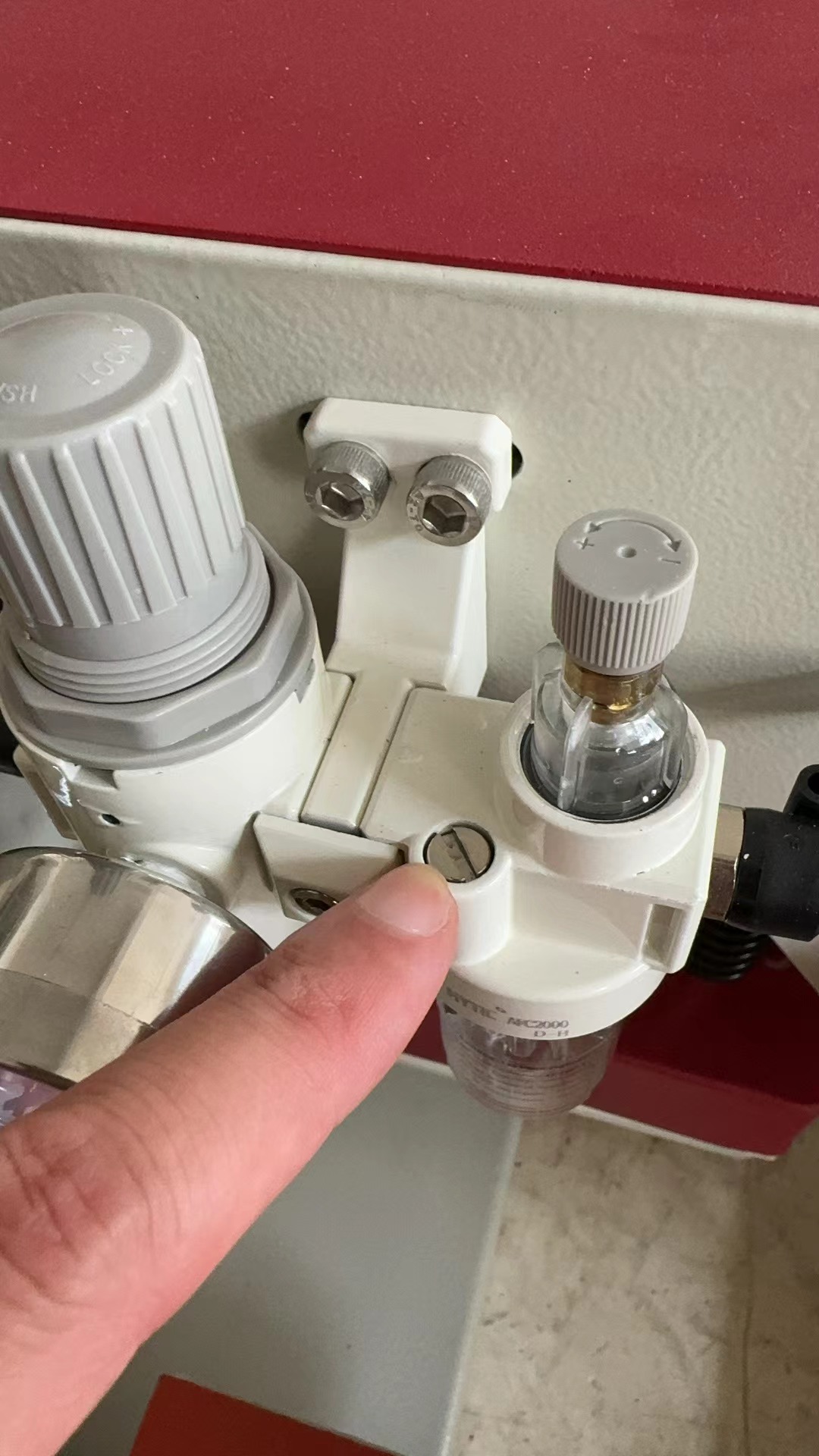

1. Unscrew the bolt shown in the picture (where finger is pointing)
2. Add lubricating oil until it barely touches the suction tube
