Proper maintenance ensures your heat press continues to deliver consistent, professional-quality transfers and extends its service life well beyond the standard usage cycle.
♻️ 1. Daily Maintenance
Perform these quick checks at the start or end of each workday:
🔹 Clean the Heat Platens
- After the machine cools to below 100°F (≈40°C), use a soft cloth slightly dampened with clean water or mild detergent to wipe off ink, adhesive residue, or sublimation paper marks.
- Do not use metal brushes or abrasive pads on the Teflon-coated platen to avoid damaging the non-stick surface.
🔹 Inspect the Air System
- Make sure the air hose(The hose is cut evenly) and pneumatic fittings are secure — check for leaks by listening for hissing sounds while the compressor is pressurized.
- Drain moisture from your air compressor’s tank daily, as built-up condensation can corrode valves and reduce pressing power.
🔹 Clean the Slide Rails & Dual Platens
- Remove lint, dust, or paper residue from the sliding tracks.
- Apply a thin coat of high-temperature silicone oil or industrial lubricant to sliding rails once a week to ensure smooth tray motion.
⚙️ 2. Weekly Maintenance
Once a week, do a deeper check on:
🔹 Pressure Balance Calibration
- Perform a test press at mid-pressure. Make sure both platens contact uniformly across all corners.
- If uneven pressure occurs, adjust the pressure knob or pneumatic regulator until even results are achieved.
🔹 Check the Infrared Positioning System
- Wipe the infrared sensor heads and lenses with a microfiber cloth. Dust can weaken the laser visibility or shift alignment.
- Confirm magnets of the 4 IR heads hold firmly; re-seating them improves precision.
🔹 Tighten Bolts & Electrical Terminals
- Gently tighten exposed screws, frame joints, and electrical connectors as vibration over time can loosen them.
- Make sure the ground wire (earth connection) is intact for safety.
🧼 3. Monthly / Periodic Maintenance
Every month (or every 150–200 hours of operation):
🔹 Electrical Inspection
- With power OFF and machine unplugged, inspect the solid-state relay (SSR) and limit switch wiring for discoloration or fraying. Replace if damaged.
- Verify that all temperature sensors maintain accurate readings (±3°F). Inconsistent readings may indicate sensor wear.
🔹 Pneumatic Circuit Health
- Use a small amount of air tool oil on pneumatic quick connectors and cylinder shafts to maintain smooth movement.
- Check that the pressure gauge indicates a stable range when pressing (usually 0.4–0.6 MPa). Fluctuations may mean the compressor or regulator requires cleaning.
🛡️ 4. Long-Term Care & Storage
If you plan to store the machine or not use it for a few weeks:
- Unplug and release air pressure completely.
- Cover with the included dust or waterproof cover to prevent oxidation and dust buildup.
- Store in a dry area, ideally between 15°C–30°C (59°F–86°F) with less than 70% humidity.
- Before next use, check air fittings and heat sensors to ensure full functionality.
🔋 5. Components with Limited Lifespan
WUMSTOT specifically mentions that only three parts are consumable lifetime components:
| Component |
Average Lifespan |
Maintenance Tip |
| Temperature Sensor Wire |
2–3 years |
Avoid bending sharply; check accuracy periodically |
| Limit Switch |
2–4 years |
Keep area clean of lint; replace if pressing stops inconsistently |
| Solid-State Relay (SSR) |
3–5 years |
Replace if temperature fluctuates or fails to heat |
These three parts are eligible for free replacement within 5 years under WUMSTOT’s service policy.
💡 6. Operating Best Practices
- Always preheat the platen for 3–5 minutes before production use for consistent transfers.
- Avoid exceeding 299°C / 570°F, as continual maximum temperature use shortens platen life.
- Use 12 AWG or 10 AWG wiring on a 20–25A circuit breaker, per manufacturer safety guidelines.
- Use an oil‑free air compressor rated for 6 gal / 150 PSI / 2.6 CFM to ensure optimal pneumatic pressure.
🔧 7. Troubleshooting Quick Reference
| Issue |
Likely Cause |
Recommended Action |
| Uneven pressing results |
Dirty or misaligned platen |
Clean & adjust platen pressure |
| Heat not rising |
Faulty SSR or sensor wire |
Check connection / replace part |
| No air movement |
Pressure < 0.4 MPa or air leak |
Tighten fittings / check compressor output |
| Laser not visible |
Dust on infrared lens |
Clean lenses and magnetic base |
✅ Summary

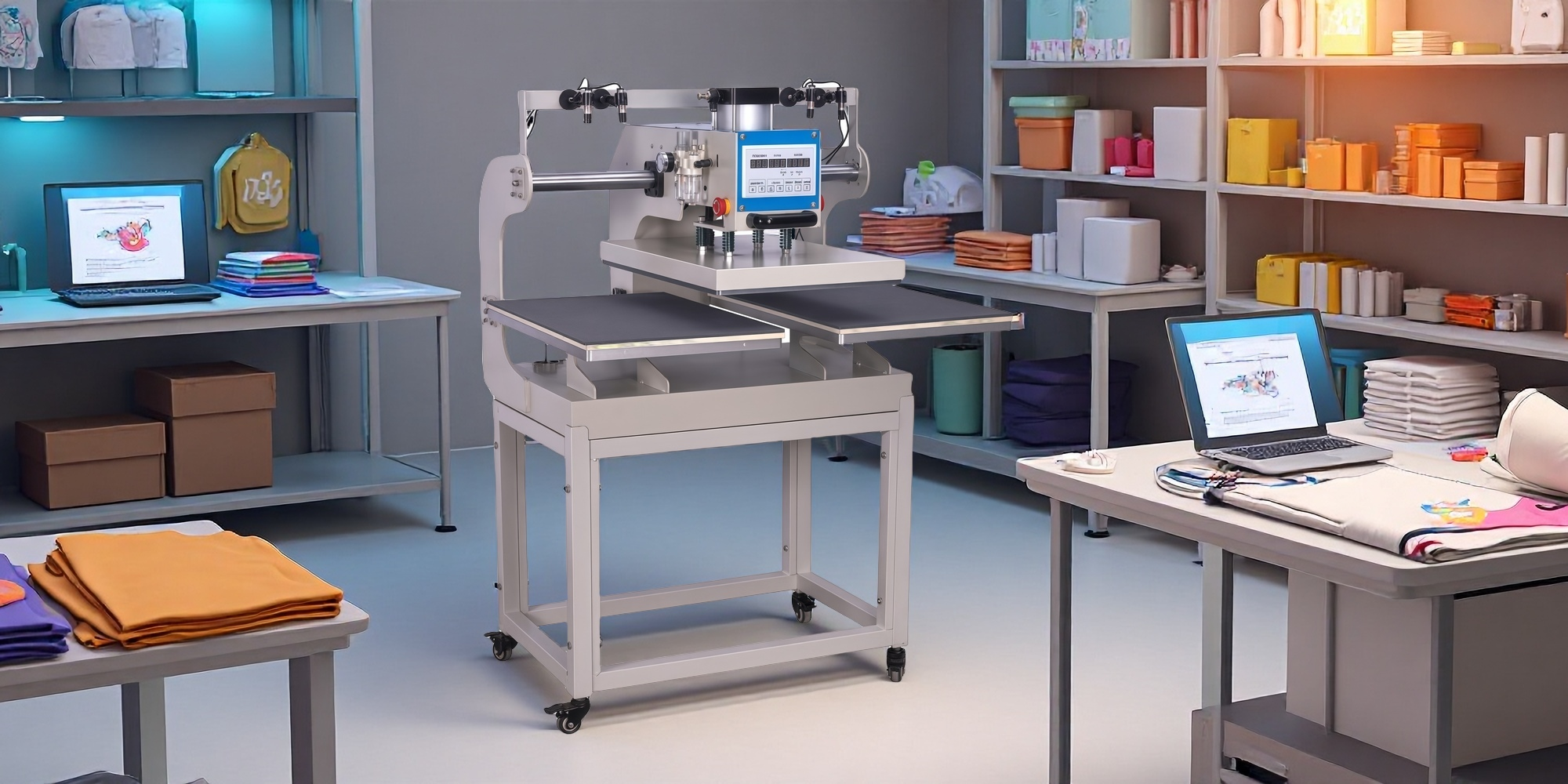

Proper maintenance of your WUMSTOT 16x24 Pneumatic Dual Platen Heat Press involves:
- Daily cleaning of heat platens and air parts,
- Weekly calibration of pressure and alignment,
- Monthly electrical and pneumatic inspection,
By following these steps, your machine can easily exceed 10,000+ pressing cycles while staying safe, stable, and highly productive.
